Shure

Shure UA845 Antenna Distribution Pack

Shure UA845 Antenna Distribution Pack

PRICE LISTED IS DAILY RENTAL RATE

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Delivery calculated at checkout.
Frequency

Will Call / Customer Pick Up

Available for pick up at the following locations:

1) NEW JERSEY
2001 42nd Street
North Bergen, NJ 07047
Hours: Mon - Sat
By Appointment Only.
2 Hour Window.
No Fee.

2) NEW YORK
276 Meserole Street
Brooklyn, NY 11206
Hours: Mon - Fri 10am - 5pm
*** This warehouse has a $50 warehouse prep fee for all customer pick ups.

Delivery & Set Up Options

DELIVERY

We offer delivery services within NJ, NY, and parts of PA and CT. Delivery prices are calculated at checkout.

SETUP

Set up is available as an optional service, billed accordingly. Some heavier, complicated, or fragile items require handling by our staff for safety and liability concerns. We will send you a quote for SETUP if requested.

Call us for a quote - 646.661.4078

Insurance & Deposit Requirements

OUR INSURANCE POLICY - Click For Details

Insurance or security deposit is required for this item if the CLIENT is operating equipment on their own. This security is NOT required where ETC will set up & operate the equipment. If you are not sure about insurance requirements for your order / event, please contact us at your earliest convenience for details @ 1.646.661.4078

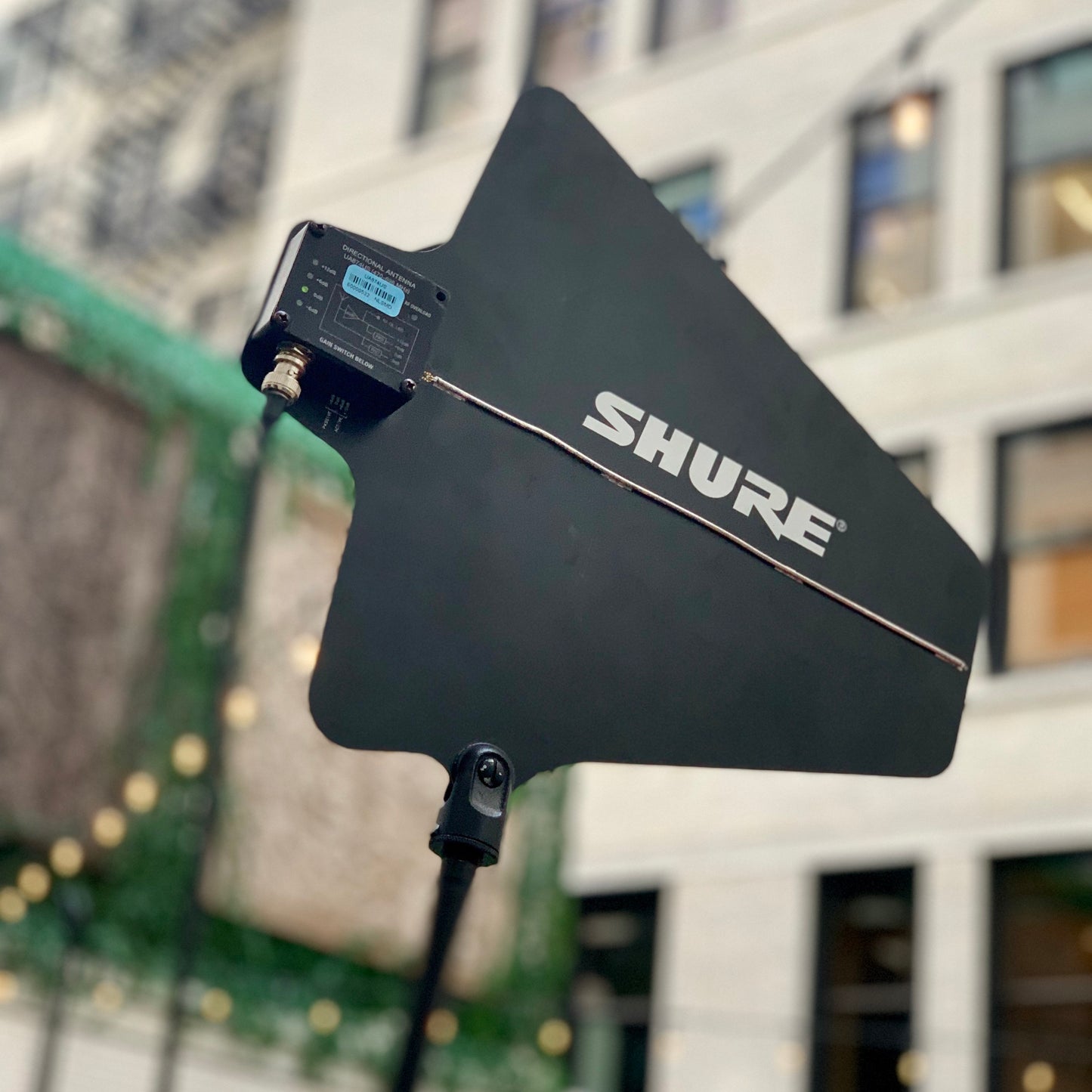

Experience improved wireless reception with the UA874. This UHF antenna uses a log periodic dipole array to produce a cardioid pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard 1/2 wave omnidirectional antennas.

An integrated amplifier with four gain settings compensates for varying degrees of coaxial cable signal loss. The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

Active Antenna/Power Distribution System, five-way, wideband VHF and UHF, internal power supply. Five-Way Active Antenna Splitter and Power Distribution System for U4S, UR4S, U4D, and UR4D receivers, AD4, ULXD4, UXLD4D, ULXD4Q receivers, SLX4, BLXR4 and QLXD4 receivers.

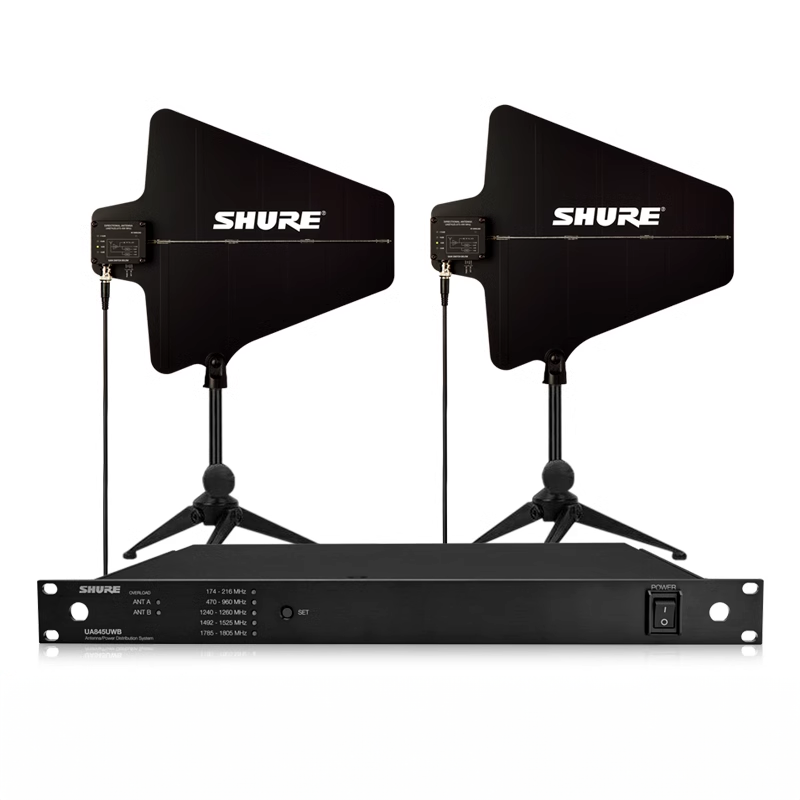

The Shure Model UA845UWB is an amplified, VHF and UHF Antenna Distribution System that expands a wireless microphone system by splitting one pair of antennas to multiple Shure Axient Digital, UHF-R, ULX-D, BLX4R, SLX4 and BLX4R. It also amplifies RF signals to compensate for insertion loss due to splitting signal power to multiple output connectors. Each UA845UWB allows up to four receivers to use the same antennas. CASCADE connectors allow connections to a fifth receiver or a second UA845UWB.

Expandability. The UA845UWB Antenna Distribution System is designed for large Axient Digital, UHF-R, ULX-D™, QLX-D, SLX, BLX4R wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the CASCADE ports allow connection to a fifth receiver or a second UA845UWB.

Compatibility. The UA845UWB is compatible with all Shure Axient Digital, UHF-R, ULX-D, SLX, BLX4R, QLX-D wireless microphone receivers operating within a compatible frequency range (see UHF Carrier Frequency Ranges in the Specifications section).

CASCADE Ports. Two 50 Ω, BNC-type antenna CASCADE ports allow an additional UA845UWB unit or a fifth wireless receiver. A large wireless system can be run off of a single pair of antennas.

Power OUTPUT and OUT Connectors for Shure UHF and UHF-R® Wireless systems. Up to five U4 or UR4 receivers can be daisy-chained and powered from a single source via the Power OUTPUT connectors. DOES NOT APPLY TO ULX or ULX-D.

Active Antenna/Power Distribution System, five-way, VHF, UHF, 1.2, 1.5, and 1.8 GHz, internal power supply.

View full details
