Tascam Model 12 - 12 Channel Mixer, Interface, Multitrack Recorder

Podcasters, Vloggers, Musicians, and creators of all stripes will find everything they need to deliver professional quality content built into the very DNA of the Model-12.

A 12-channel mixer, interface, and recorder with 10 available playback tracks, the Model-12 records WAV files of up to 24-bit/48kHz directly to an SD card so you can capture the moment as it happens, wherever it happens. Prefer tracking straight to your computer? Onboard USB allows direct input to a wide range of standard DAWs (digital audio workstations) for recording and playback. Plus, Model-12 provides control of basic DAW functions like transport, solo, pan, mute, level control, and more, directly from its surface creating a true console workflow.

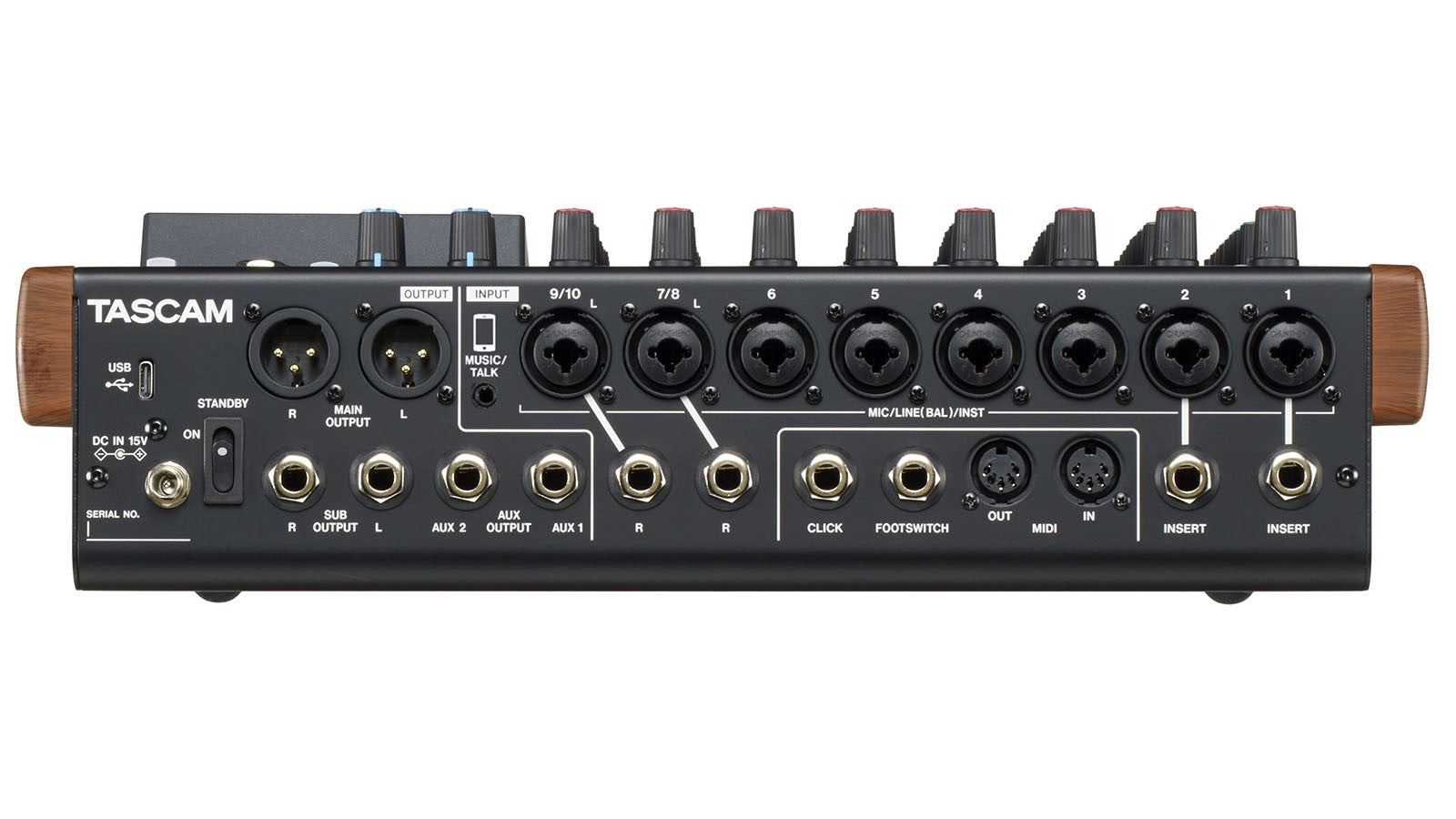

Six Tascam low noise HD preamps with a wide dynamic range, accurately capture the sonic characteristic of the input. Speaking of inputs, the back panel features 8 balanced XLR/TRS combination jacks for microphones, keyboards, drum machines, etc.... with +48V phantom power provided for condenser mics. All 8 channels are also Hi-Z capable so you can plug in a guitar directly to record clean tones or model it in your DAW. Two additional balanced line inputs are provided on channels 9/10, while two inserts on channels 1/2 beg you to hook up your vintage tube mic pre and compressor to sweeten those tracks!

You need to hear what you're producing, as do the artists. The Model-12 features stereo main and sub outputs, each with dedicated level control, as well as two discrete headphone outputs for separate mixes. You also have access to a pair of auxiliary outputs giving you extreme flexibility adapting to any monitoring situation.

Podcasters and live streamers will appreciate the Bluetooth capability, smartphone input, and mix-minus features, along with multiple mic-ready channels that make it easy to include one or several collaborators.

An all-in-one production solution, the Model-12 comes equipped with a one-knob compressor and EQ on each input channel, and a full palette of digital reverbs on board to help you create professional, deliverable content. PFL/AFL and Solo buttons provide versatile monitoring of single channels or groups when making critical mix decisions. MIDI In/Out, USB MIDI, MIDI Time Code (MTC), and MIDI clock output are integrated to give you even more flexibility when incorporating external gear.

From inspiration to final product, capture it all then put it out there with the Tascam Model-12.

Applications

• Podcasting
• Vlogging
• Songwriting
• Multimedia content creation

Includes

• AC adapter
• Flight Case


Features

• 10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
• TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
• 1-knob compressor and 3 band EQ installed on all input modules
• Equipped with 60mm faders
• Selectable PFL/AFL modes and the in-place solo (SIP)
• Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
• Dual headphone output with individual volume and source selection
• TASCAM FX equipped
• Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
• 12 in / 10 out USB audio interface function (USB Type-C connector)
• Built-in metronome function
• Bluetooth® 5.0 input with AAC and SBC codec support
• Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
• Supports simple DAW control (HUI/MCU protocol emulation)
• Click output with TAP TEMPO support
• Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
• Smartphone input with mix-minus function

Specifications

• Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
• File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
• Recording File Format: WAV(BWF)
• Playback Format: WAV, BWF
• Sampling Frequency: 44.1k / 48k Hz
• Bit Depth: 16 / 24 bit
• Maximum Recordable ChannelNumber: 12ch (10ch + 2 stereo mix)
• MIC IN: CH1 to 6, 7/8, 9/10
• Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
• Maximum Input Level: +10dBu
• Nominal Input Level: -8dBu
• Minimum Input Level: -58dBu
• Gain Adjustable Range: 0 to 50dB
• Input Impedance: 1.8k ohm
• Phantom Power supply: +48V
• LINE IN: CH1 to 6, 7/8, 9/10
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
  • Maximum Input Level: +22dBu
  • Nominal Input Level: +4dBu
  • Gain Adjustable Range: -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
  • Input Impedance: 22k ohm
• INST IN: CH1 to 6, 7, 9
  • Connector: 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
  • Maximum Input Level: +19.8dBV
  • Nominal Input Level: +1.8dBV
  • Gain Adjustable Range: -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7 and 9
  • Input Impedance: 1M ohm
• INSERT: CH 1 and 2
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND) Return (Ring)
  • Maximum Input Level: +18dBu
  • Nominal Input Level: 0dBu
  • Input Impedance: 5k ohm, Send (Tip)
  • Maximum Output Level: +18dBu
  • Nominal Output Level: 0dBu
  • Output Impedance: 100 ohm
• MUSIC/TALK: CH 9/10
  • Connector: 1/8" (3.5mm) TRRS jack (for Smartphone, Unbalanced)
  • Maximum Input Level: +8dBV
  • Nominal Input Level: -10dBV
  • Input Impedance: 10k ohm
• MAIN OUTPUT
  • Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
  • Maximum Output Level: +22dBu
  • Nominal Output Level: +4dBu
  • Output Impedance: 200 ohm
• SUB OUT, AUX OUT
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
  • Maximum Output Level: +16dBu
  • Nominal Output Level: -2dBu
  • Output Impedance: 200 ohm
• PHONES 1 and 2
  • Connector: 1/4" (6.3mm) Stereo Phone jack
  • Maximum Output Level: 45mW + 45mW (32 ohm loaded)
• FOOTSWITCH: Compatible with TASCAM RC-1F Foot Switch
  • Connector: 1/4" (6.3mm) TRS Phone jack
• CLICK: Metronome click
  • Connector: 1/4" (6.3mm) TRS Phone jack
• USB Audio: for connection with PC
  • Connector: USB Type-C
  • Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
  • Sampling Rate: 44.1k / 48k Hz
  • Bit Depth: 16 / 24 bit
  • Maximum INPUT: 12ch
  • Maximum OUTPUT: 10ch
• Bluetooth®: to MAIN or CH 9/10
  • Version: 5.0
  • Output Class: Class 2 (Transmission range: approx. 33 ft. / 10 m) * Transmission range may vary, depending on surroundings.
  • Supported Profile: A2DP
  • Supported A2DP Codecs: SBC, AAC
  • A2DP Content Protection: SCMS-T
• Channel EQ
  • Low-Cut: 100Hz, -12dB / Octave
  • Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
  • Mid-Peaking: (MONO): +15dB / -15dB, 100Hz to 8kHz Variable, (STEREO): +15dB / -15dB, Center frequency = 600Hz
  • MID Band Q Fix, 0.5
  • Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz
  • Master section EQ
  • Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
  • MID-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
  • Low-Shelving: +15dB / -15dB, Cut off frequency = 60Hz
• Internal Effects
  • HALL 1
  • HALL 2
  • ROOM 1
  • ROOM 2
  • PLATE
  • STUDIO
  • LIVE
  • DELAY 1
  • DELAY 2
  • PING PONG
  • CHORUS
  • FLANGER
  • DELAY + HALL 1
  • DELAY + HALL 2
  • CHORUS + HALL 1
  • CHORUS + HALL 2
• *Fx type and settings can be stored in the library slot
  • Power: AC 100 to 240V, 50/60Hz
    • Power Consumption: 16W
  • Dimensions: 343(W) × 360(H) × 98.5(D)mm, 13.5(W) × 14.2(H) × 3.96(D)inch (including knob height and protrusion)
  • Weight: 4.3 kg / 9.5 lb
  • Operating Temperature: 5 to 35 °C / 41 to 95 °F
  • Audio Performance
    • Frequency Response: 20Hz to 20kHz (+0.5/-0.5 dB, MIC IN to MAIN OUT)
    • S/N ratio: -103dBu (MAIN OUT, MAIN fader: nominal posirion)
    • Equivalent Input Noise: -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
    • Total Harmonic Distortion: 0.004% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)
    • Crosstalk: -95dB, channels / input and output, (1kHz, PAN fully counter clockwise / fully clockwise)
    • Maximum Gain
    • 74dB (MIC to MAIN OUT)
    • 50dB (MIC to INSERT OUT)
    • 74dB (MIC to SUB OUT)
    • 75dB (MIC to AUX 1/2 OUT)
    • 24dB (USB/SD to MAIN OUT)
    • (EQ flatten, PAN fully counter clockwise / fully clockwise)
  • Windows
    • Compatible Computers: Windows-compatible computer with a USB2.0 port
    • CPU: Dual core / 2GHz or faster
    • Memory: 2GB or more
    • Driver: USB Audio Class 2.0, ASIO2.0, WDM (MME)
    • Screen Resolution: 1280 × 800 Dots or more
  • Mac
  • Compatible Computers: Apple Mac computer with a USB2.0 port
  • CPU: Dual core / 2GHz or faster
  • Memory: 2GB or more
  • Driver: Core Audio
  • Screen Resolution: 1280 × 800 Dots or more
  • Supported OS': Windows 10 (May 2019 Update) , Windows 8.1
  • Mac: macOS Catalina New , macOS Mojave , macOS Sierra‎ (10.12)
